Description

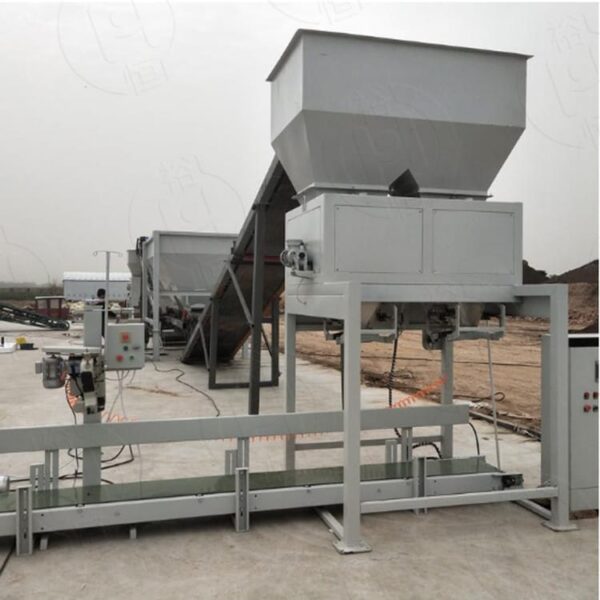

Introduction of Multi-functional Packing Machine

The double station multi-functional packing machine is a device used to package granular materials and is widely used in food, chemical, pharmaceutical and other industries. The double-station packing machine is equipped with two workstations, which can be packaged at the same time, improve production efficiency and reduce waiting time. The equipment is usually equipped with an automated control system, which can realize automatic metering, filling, sealing and other functions, reduce manual intervention and improve packaging accuracy. It is suitable for various granular materials, such as rice, beans, sugar, salt, pharmaceutical granules, etc., and can meet the needs of different customers.

This machine is controlled by computerized instrument and easy to operate & manage. For example, weighing packing 25kg, you just need to input it 25kg as the target weight and manually place the ready bag to the outlet of the machine, then the automatic clamping device will clamp the bag close to the body of outlet. And the machine will automatic weighing and filling 25kg, then, automatic unloading the bag. Then, the belt conveyor will transport the filled bags to the sewing machine for stitching the bag top.

Product Process of Multi-functional Packing Machine

When the packaging machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow feeding mode. When the material weight reaches the set value of fast feeding, the fast feeding is stopped and the slow feeding is maintained. When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process. At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag. After the material is put out, the unloading door of the weighing bucket will be closed automatically; after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next station. In this way, it operates automatically.

Giving the bag (loading the bag) → automatically clamps the bag→ material is automatically quantitatively weighed and filled into bags→ automatic bag release /bag holding/bag transfer→ automatic label feeding /folding /or heat sealing/or sewing→ entering the next process.

Application of Multi-funcational Packing Machine

Belt quantitative packing machine, can be widely used in grains (such as rice, beans, feed, chemical raw materials, etc.), powder (feed screw feeder, such as surface, salt, seasoning powder, gypsum powder, powder feed, chemical raw materials, etc.), small makings fragile material or block material and small particles mixed material (gate + belt conveyor feeding), and other quantitative weighing and packing.

Product Feature of Multi-funcational Packing Machine

*The quantitative packing machine for mixtures needs manual assistance in bagging, automatic weighing, bag clamping, filling, automatic conveying and sewing.
*Mixture quantitative packaging machine adopts belt feeding mode, through instrument control, to ensure the cutting speed and accuracy;
*Mixture quantitative packaging machine solves some special chemical raw material packaging problems. It has a wide range of applications and simple operation.
*Mixture quantitative packaging machine adopts high precision sensor and high intelligent weighing controller, which has high measurement accuracy and stable performance.
*The electric and pneumatic components of the quantitative packing machine for mixtures are imported components, which have long service life and stable performance.
*The control cabinet of mixtures quantitative packaging machine adopts sealed form, which is suitable for harsh dust environment.
*Mixture quantitative packaging machine material error automatic correction, zero automatic tracking, overshoot detection and suppression, excess and underalarm.
*Selection of mixtures quantitative packaging machine: folding machine, automatic sewing machine, dust removal unit and other devices can be purchased at random.
